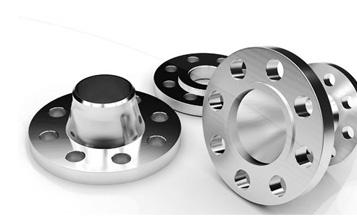

FLANGES

Chintamani Exports & Alloys is a top notch producer & supplier of an assortment of Flanges.

ASTM A182 F1, F2, F5, F5a, F9, F10, F91, F92, F122, F911, F11 Class 1, F11 Class 2, F11 Class 3, F12 Class 1, F12 Class 2, F21, F 3V, F3VCB, F22 Class 1 , F22 Class 3, F22V, F23, F24, FR, F 36 Class 1, F36 Class 2, F6a Class 1, F6a Class 2, F6a Class 3, F6a Class 4, F6b, F 6NM, FXm-27 Cb, F429, F430, F304, F304H, F304L, F304LN, F309H, F310, F310H, F310MoLN, F316, F316H, F316L, F316N, F316LN, F31Ti, F317,F317L, S31727, S32053, F347, F347H, F348, F348H, F321, F 321H, F XM-11, F XM-19, F 20, F 44, F45, F46, F47, F48, F49, F56, F58, F62, F63, F64, F 904 L, F 50, F 51, F 52, F 53, F 54, F 55, F57, F59, F60, F61, F65, F66, F67 ( Standard Specification For Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings , and Valves and Parts For High Temperature Service)

Size:- ½” to 100 “

ASTM A350 Grade LF!, Grade LF2, Grade LF3, Grade LF5, GradeLF6, Grade LF9, Grade LF787 ( Standard Specification for Carbon and Low-Alloy Steel Forgings, Requiring Notch, Toughness Testing for Piping Components)

Size:- ½” to 100 “

ASTM A105 (Standard Specification for Carbon Steel Forgings for Piping Applications)

Size:- ½” to 100 “

ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70 ( Standard Specification For Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts For High- Pressure Transmission Service)

Size:- ½” to 100 “

ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26, F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 (Standard Specification For Titanium and Titanium Alloy Forgings)

Size:- ½” to 100 “

SPECIFICATION

Forged & Plate Flange	Blind flange, Lapped Flange, Threaded Flange, Slipon Flanges, Weld Neck Flanges, Socket Weld Flanges.
Flange Material Wise	Titanium flanges, tantalum flanges, nickel flanges, cupro-nickel flanges, zirconium flanges, hastelloy flanges, incolloy flanges, niobium flanges, hr alloy flanges, alloy 20 flanges, monel flanges, inconel flanges, nimonics flanges, stainless steel flanges, duplex steel flanges, super duplex flanges.
Blind Flanges	Specifications : ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) Applications : Used in quick assembly to save the cost, these are also used in less strict requirements in terms of length of pipe section.
Slip on Flanges	Specifications : ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) Applications : Used in quick assembly to save the cost, these are also used in less strict requirements in terms of length of pipe section.
Socket Welding Flanges	Specifications : ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) Applications : Recommended for orifice flanges. These work as substitute for slip-on-flanges in the cases where the diameter of the tube is very small and working pressure is very high.
Lap joint Flanges	Specifications : ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) Applications : These are primarily used when quick assembly and disassembly of pipe line section is required under limited working pressure.
Threaded Flanges	Specifications : ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) Applications : These flanges are used in special requirements to work under high temperature and pressure, making sure no welding joint is made at the assembly.
Weld Neck Flanges	Specifications : ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) Applications : These are mainly used on heat coupling of pipes when there is possibility of expansion of the section while bending stress on the coupling.
