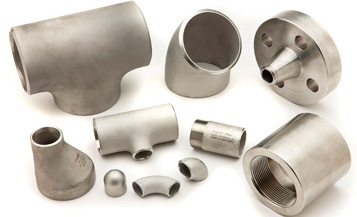

BUTTWELD FITTINGS
Chintamani Exports & Alloys is a top notch producer & supplier of an assortment of Buttweld Pipe Fittings. A pipe fitting is characterized as a section utilized as a part of a channeling framework, for altering course, stretching or for change of pipe breadth, and which is mechanically joined to the framework. There are various sorts of fittings and they are the same in all sizes and timetables as the pipe.
Fittings are divided into three groups:
Buttweld (BW) fittings whose dimensions, dimensional tolerances et cetera are defined in the ASME B16.9 standards. Light-weight corrosion resistant fittings are made to MSS SP43.
Socket Weld (SW) fittings Class 3000, 6000, 9000 are defined in the ASME B16.11 standards.
Threaded (THD) fittings Class 2000, 3000, 6000 are defined in the ASME B16.11 standards.
Applications of Buttweld Fittings
A piping framework utilizing buttweld fittings has numerous inborn favorable circumstances over different structures.
Welding a fitting to the pipe implies it is for all time airtight.
The constant metal structure framed amongst channel and fitting adds quality to the framework.
Smooth internal surface and continuous directional changes diminish weight misfortunes and turbulenceand minimize the activity of consumption and disintegration.
A welded framework uses at least space.
Bevelled Ends
The closures of all buttweld fittings are slanted, surpassing divider thickness 4 mm for austenitic stainless steel, or 5 mm for ferritic stainless steel. The state of the angle contingent on the real divider thickness. This sloped finishes are should have been ready to make a "Butt weld".
ASME B16.25 covers the readiness of buttwelding finishes of piping parts to be joined into a piping framework by welding. It incorporates necessities for welding slants, for outside and inside molding of substantial divider segments, and for readiness of interior finishes (counting measurements and dimensional resiliences). These weld edge readiness necessities are additionally consolidated into the ASME models (e.g., B16.9, B16.5, B16.34).
Material and Performance
The most widely recognized materials utilized as a part of fittings delivered is carbon steel, stainless steel, cast iron, aluminum, copper, glass, elastic, the different sorts of plastics, and so on..
Likewise, fittings, similar to channels, for particular purposes here and there inside outfitted with layers of materials of a totally diverse quality as the fitting themselves, which are "lined fittings".
The material of a fitting is essentially set amid the decision of the pipe, much of the time, a fitting is of the same material as the pipe.
Threaded Fittings general
Threaded joints presumably speak to the most established technique for joining piping frameworks. Like Socket Weld fittings, threaded fittings are mostly utilized for little pipe distances across (Small Bore Piping); for the most part to pipe whose ostensible measurement is NPS 2 or littler.
The dimensional gauges for decrease pipe strings are given in ASME B1.20.1. That report gives all required measurements including number of strings per inch, pitch distance across, and typical engagement lengths for all channel breadths.
Threaded piping is generally utilized as a part of ease, noncritical applications, for example, residential water, fire security, and modern cooling water frameworks.
Threaded fittings are regularly made of cast dark or moldable iron, cast metal or bronze, or manufactured amalgam and carbon steel.
They are accessible in three weight evaluations: 2000lbs, 3000lbs and 6000lbs.
NPT Thread
All fittings on this page are portrayed, are given NPT string, ASME B1.20.1. The American National Pipe Thread Tapered, is the best known and most generally utilized association where the pipe string gives both the mechanical joint and the water driven seal. NPT has a decreased male and female string which seals with Teflon® tape or jointing compound.
Types of Threaded Fittings by Class and Size
Description |
Class Designation |
||
2000 |
3000 |
6000 |
|
Elbows 45 and 90 degreesTees, Crosses, CouplingHalf-Coupling, Cap |
1/2 - 4 |
1/2 - 2 |
1/2 - 2 |
1/2 - 4 |
1/2 - 2 |
1/2 - 2 |
|
1/2 - 4 |
1/2 - 2 |
1/2 - 2 |
|
Pipe Wall |
SCH 80 and XS |
SCH 160 |
XXS |
Fittings and Flanges for Threaded Systems
Elbow 90°
This Elbows make 90° changes of direction in the run of pipe.
Tee
This Tee makes 90° branch from the main run of pipe.
Cross
Crosses makes 90° branch from the main run of pipe.
Elbow 45°
This Elbows make 45° changes of direction in the run of pipe.
Full-coupling
Termed Coupling, joins pipe two pipe or to a nipple etc..
Cap (End Cap)
Seals the threaded end of pipe.
Half-coupling
The Half Coupling can be directly welded to the run pipe, to make a branch connection.
Square head plug
Seals the threaded end of fitting.
Hex head plug
Seals the threaded end of fitting.
Round head plug
Seals the threaded end of fitting.
Hex head bushing
Can be used to reduce a threaded fitting.
Union (MSS SP-83)
Unions are primarily used for maintenance and installation purposes. It is a screwed joint design and it consists of three interconnected pieces. Two internally threads and a centerpiece that draws the ends together when rotated.
90° Long Radius Elbow
180° Short Radius Elbow
Concentric Reducer |
Steel Fittings, Butt Weld |
90° Long Radius Elbow
180° Short Radius Elbow
Concentric Reducer |
Chintamani Exports & Alloys are engaged in producing a wide range of Weld Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings,Stainless Steel Fittings, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, all are butt weld, including Long Radius 90 Degree Elbow, Short Radius 90 Elbow, Extra Long Radius 90 Pipe Elbow, Long Radius 45 Degree Elbow, Short Radius 45 Elbow, Extra Long Radius Elbow 45, Long Radius 180 Elbow (Pipe Bend), Short Radius 180 Pipe Elbow (180 Return Bend) , Extra Long Radius 180 Tube Elbow (180 Return Bend), Equal Tee, Reducing Tee, Y Branch Tee, Cross, Reducing Cross, Eccentric Reducer, Concentric Reducer, Lap Joint Stub End and Pipe Cap in stainless steel and carbon steel material.
Chintamani Exports & Alloys use Weld Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fitting, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, butt weld, in different technical specifications, which are used in water supply pipelines, industrial food processing pipeline, oil industry, chemical industry, petroleum industry and in various other fluid transfer piping systems. Our Stainless Steel and Carbon steel Weld Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fitting, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, butt weld are carefully analyzed according to the strictest quality and safety controls from the choice of raw materials, machining, heat treatment, and packing. Strict quality controls and testing are made at every stage of production to ensure only the best products. So our Weld Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fitting, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, butt weld are popular for their dimensional accuracy, high strength, long service life, leak proof, corrosion resistance.
Chintamani Exports & Alloys range of ANSI BW Fittings are Seamless from 1/2" (15NB) up to 80" (2000 NB), welded from 1/2" (15NB) up to 80" (2000 NB) for piping system. The schedule range includes 5S to Schedule 160 and Schedule XXS. The focus is on the standard grades Carbon Steel, Stainless Steel 304, 304L, 316, 316L, 304 / 304L, 316 / 316L, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.0405 but also on Duplex SAF2205 available from 1/2" up to 12" of pipeline.
Chintamani Exports & Alloys are stainless steel manufacturer, carbon steel manufacturer, Pipe Fitting manufacturer, Fittings manufacturer, Taiwan manufacturer, Taiwan supplier and Taiwan factory because we are manufacturing in Taiwan our Weld Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fitting, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, butt weld , which are all made in Taiwan. Welcome to buy from Taiwan our pipe fittings.
Chintamani Exports & Alloys are also China manufacturer, China supplier, China factory, China wholesale and China exporter because we are manufacturing in China our Weld Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fitting, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, butt weld, which are made in China too. Also welcome to buy from
Standard Specification :
Seamless Stainless Steel Butt Weld Fittings and Welded Stainless Steel Butt Weld Fittings to ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L or 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313, cold formed, annealed and quenched, beveled ends to ANSI B16.25, hardness to NACE MR0175 - latest edition, IC to ASTM A262E and PMI tested, certificate to EN 10204/3.1.
Seamless Carbon Steel Butt Weld Fittings and Welded Carbon Steel Butt Weld Fittings to ASME / ASTM SA / A234 WPB, DIN 1.0405, ANSI B16.9, ANSI B16.28, JIS B2312, JIS B2313, annealed and quenched, beveled ends to ANSI B16.25, hardness to NACE MR0175 - latest edition, IC to ASTM A262E and PMI tested, certificate to EN10204/3.1.
